Winged Wire Connectors for Secure Twist-On Wiring
Winged Wire Connectors
Type：P
UL Approved Wire Connectors. UL 486C Listed and CSA 22.2 No.188 Certified.
Product Details

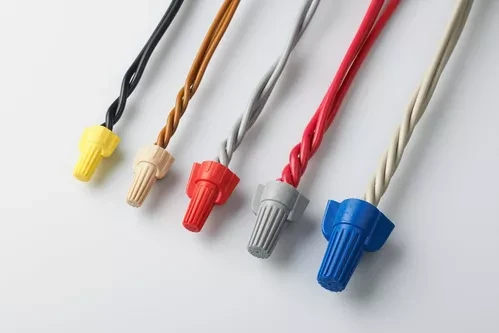

Winged Wire Connectors
The JWO YIIH winged wire connectors (Type: P) are UL listed electrical connectors designed for secure, fast twist on installations in commercial, industrial, and residential wiring applications. These connectors feature a rugged thermoplastic UL 94V-2 flame retardant shell with ergonomic wings that provide improved grip and torque during installation. Certified to UL 486C and CSA 22.2 No.188 standards, they ensure reliable performance and safety for a variety of electrical splicing needs.
Key Features
- UL & CSA Certified: UL 486C listed and CSA 22.2 No.188 certified for safety
- Durable Thermoplastic Shell: UL 94V-2 flame retardant housing for reliable insulation
- Ergonomic Wing Design: Wings provide enhanced grip and easier twist on installation
- Twist On Connection: Quick and secure electrical wiring without tools
- Wide Application: Suitable for lighting systems, junction boxes, control panels, and general commercial electrical splices
Specifications
| Type | P (Winged Wire Connectors) |
|---|---|
| UL Rating | UL 486C & CSA 22.2 No.188 Listed |
| Outer Shell | Tough thermoplastic, UL 94V-2 flame retardant |
| Voltage Rating | 600V Max |
| Temperature Rating | 105°C (221°F) |
| Wire Range | 18–10 AWG Copper |
| Installation | Twist on with ergonomic wing grips for easier torque control |
Typical Applications
- Commercial electrical wiring splices and junction boxes
- Lighting fixture connections
- Control panel and distribution wiring
- Any twist on electrical splice requiring secure, insulated connections
FAQ
Q1: What are winged wire connectors used for? A1: Winged wire connectors are twist on connectors used to join multiple copper conductors securely in commercial, industrial, and residential electrical wiring. They are easier to install thanks to ergonomic wing grips that improve torque during twisting.
Q2: Are these connectors certified? A2: Yes, they are UL 486C listed and CSA 22.2 No.188 certified, ensuring compliance with common electrical safety standards.
Q3: What wire sizes do these connectors support? A3: These connectors support 18–10 AWG copper wires, making them suitable for a range of typical electrical wiring applications.
Why Choose JWO YIIH
Founded in 1980, JWO YIIH is a trusted manufacturer of wiring accessories, including cable ties and electrical connectors. With decades of experience and rigorous quality standards, JWO YIIH designs products that meet UL, CSA, and other international safety certifications. Our winged wire connectors deliver consistent performance and reliable electrical connections for professional installations.
