PC62 Series Lever Type Wire Connectors
The PC62 series lever type wire connectors are UL-approved wire connectors designed for ease of installation, fast wiring, and reliable repeat connections. These connectors feature a flame-retardant polycarbonate (PC) housing that meets UL 94-V0 standards and polyamide (PA) levers that secure the conductor in place with a simple lever action.
Rated at 32A and 450V up to 600V with a maximum operating temperature of 105°C (221°F), the PC62 series is suitable for a wide range of electrical and industrial applications. The lever design eliminates the need for extra tools, helping reduce installation time and wiring errors while providing stable electrical performance.
Rated at 32A and 450V up to 600V with a maximum operating temperature of 105°C (221°F), the PC62 series is suitable for a wide range of electrical and industrial applications. The lever design eliminates the need for extra tools, helping reduce installation time and wiring errors while providing stable electrical performance.
Key Features
- UL-approved for electrical and material safety
- Flame-retardant housing meets UL 94-V0 standards
- Supports solid and stranded copper conductors from 0.2–4.0mm² (28–14 AWG)
- Tool-free lever action for quick and secure connections
Materials and Ratings
| Housing Material: | Polycarbonate (PC) |
|---|---|
| Lever Material: | Polyamide (PA) |
| Electrical Ratings: | 32A / 450V–600V |
| Operating Temperature: | Up to 105°C |
| Wire Range: | 0.2–4.0mm² (solid / stranded copper) |
Applications
These lever type wire connectors are ideal for:
- Wiring inside control panels
- Lighting distribution and power connections
- Automation equipment wiring
- Building electrical systems
- Instrument and machine control panels
FAQ
Q1. Can these connectors handle high temperatures? A1. Yes. The PC62 materials are rated up to 105°C, suitable for typical industrial environments.
Q2. Is wiring easy without tools? A2. Yes. The lever action allows conductor insertion and removal without additional tools.
Product Inquiry
| Image | Product Name |
|---|---|
|

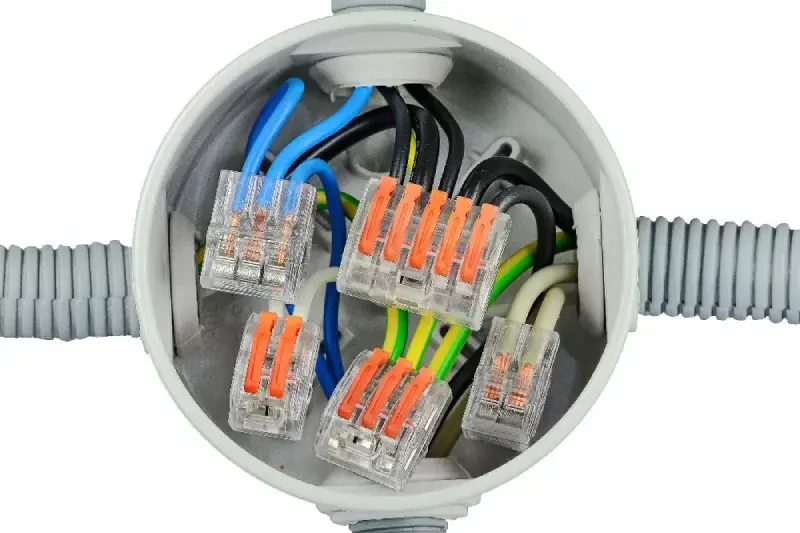

Lever Type PC62 |
